TRILOBIT MONOCHROMATIC
Specification
| Input Voltage | 230 V AC 48 V DC |
|---|---|
| Chromaticity | 3000 K 4000 K 5700 K |
| Led Variants | Red Green Blue Amber |
| Optics | Spot 7-10 deg Narrow 10-15 deg Medium 15-30 deg Wide 30-50 deg Flood 50 and more Oval 15x40 deg Assymetric |
| Lenght | 300, 600, 900 |
| ㅤ | 1200, 1500 [mm] |
| Lumen Output | 1360,2640,3840 |
| ㅤ | 4875,6030 [lm] |
| IP rating | IP66 |
| Control | ON/OFF DaLi |
Description
Description
TRILOBIT MONOCHROMATIC - LED surface mount fixture for static ilumination, for outdoor or indoor use. The linear fixture TRILOBIT MONOCHROMATIC utilises the latest OSRAM LED technology.

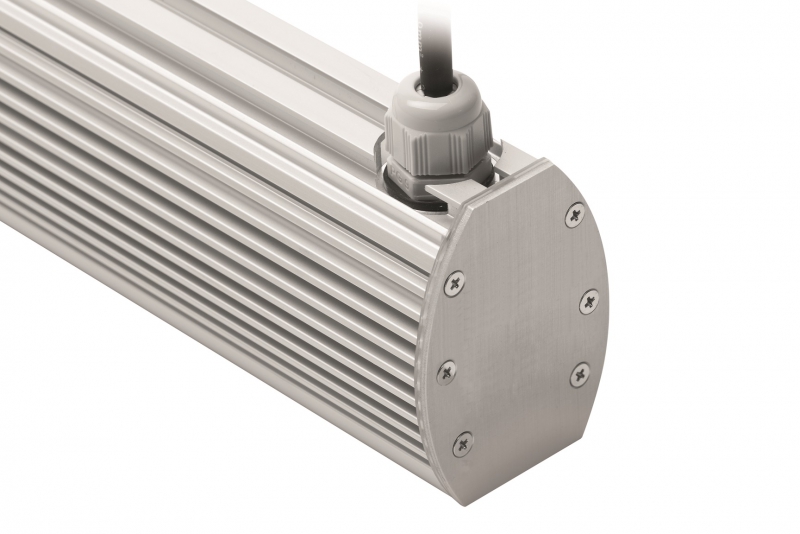

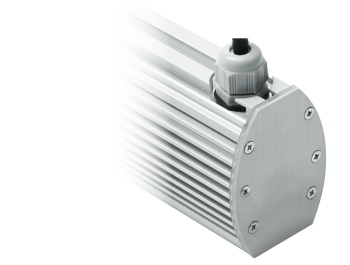

The refined thermal management system incorporates a sleek and robust heat-sink directly into the fixture to ensure maximum heat transfer and long life-time. Advanced LED optical design offers hundrets of photometrics options to meet your precise lighting requirements,while delivering reduced glare and improved light control.
This linear module bringing the flexibility to outdoor aplication. It is ideally suited to use in fasade ilumination and IP66 ensures safe operation in even the most demanding areas.

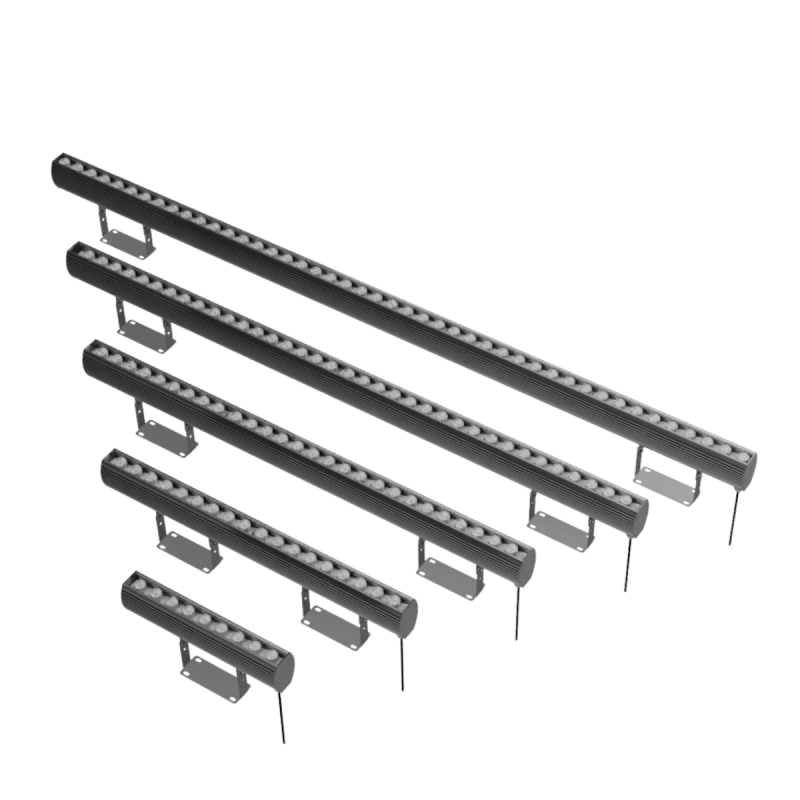

Available lenghts 300, 600, 900, 1200, 1500mm as standard.
