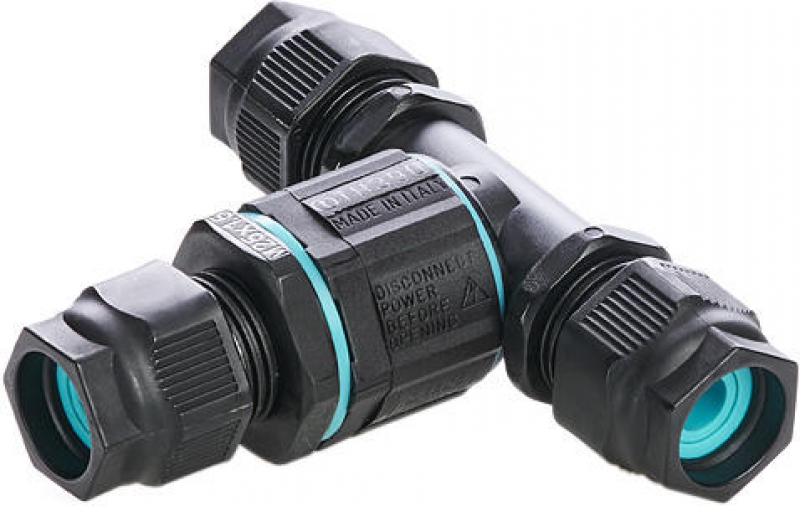

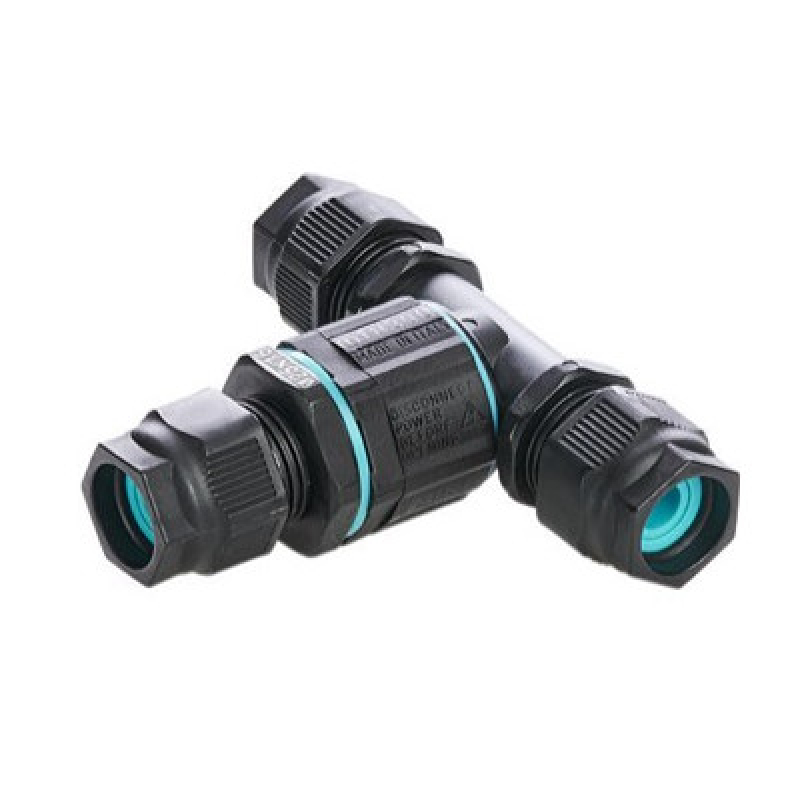

TECHNO TEETUBE – CIRCULAR MINI-JUNCTION CONNECTOR (THR.390.S3T)
TECHNO TEETUBE – CIRCULAR MINI-JUNCTION CONNECTOR (THR.390.S3T)
TECHNO TEETUBE – CIRCULAR MINI-JUNCTION CONNECTOR (THR.390.S3T)
Specification
| Cable diameter | 6.0 - 13.5 mm |
|---|
Download
Description
Description
GENERAL DESCRIPTION
Type of installation: Joint connector (re-usable/re-accessible)
Product configuration: In-line joint connector
Outer dimension: Ø 32.0 x 97.0 x 77.0
ELECTRICAL CHARACTERISTICS
Number of poles: 3
Contact marking: L - N - E
Type of connection: screw (M3 - max. 0.8 Nm)
Operating current: 32A
Operating voltage: 450V AC
Protection against solid/water (IP): IP68 (20m/1h)
