Description

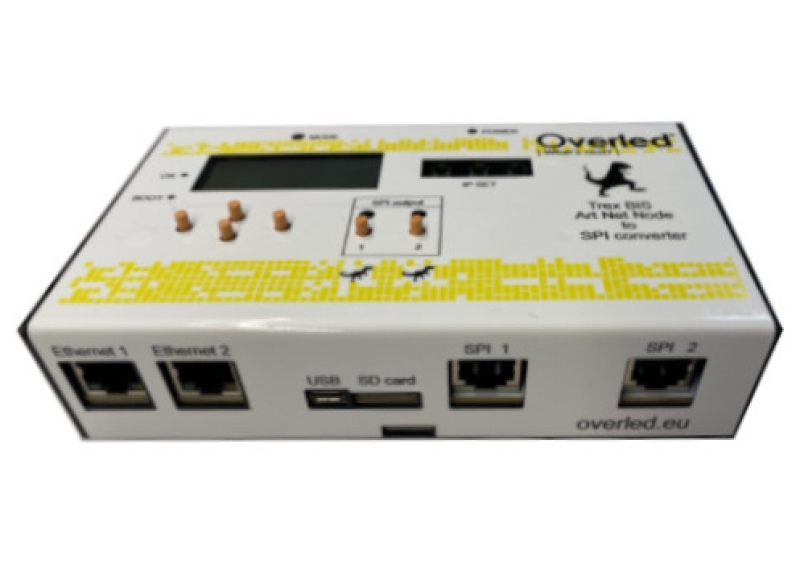

TREX BIS is an ideal product for applications where different channels are needed for LED control, such as in media facade applications, video walls etc. TREXBIS converts ART NET (DMX over IP) into SPI (serial protocol interface) allowing you to reach speeds of Streaming data up to 60fps over 1024 pixels, interfacing with different types of led chips controller, such as WS2811/WS2812/WS2812B/APA104/APA106/SK6812 WS or SK and Macroblock, other chips can be supported on demand, even with a single Data Out signal. Trex bis has an Ethernet hub that allows other Trex to relaunch the Art Net up to 48 trex bis devices, an Onboard SD memory allows you to record shows, in stand alone mode, if the TREXBIS is applied as the only device. Control. There are 3 rotary switches for the least significant byte setting of the assigned IP, the rest of the IP is set by software via the Capybara-Family.exe application in addition to other parameters, such as the number of universes to be serialized for port and the recording of the shows in memory. The onboard display allows the quick display of the RECEIVED ART NET packets, via the 4 keys below it, are possible the settings of the chip type to check for both ports, the speed of sending data, its IP, etc. For each SPI there is a signal LED that indicates the status of a stored show in play or connected to ART NET, and the button below can easily change the mode. The TREX BIS is designed for din bar mounting, or via wall fastening holes, you can also mount it in an ip65 box for outdoor application.
